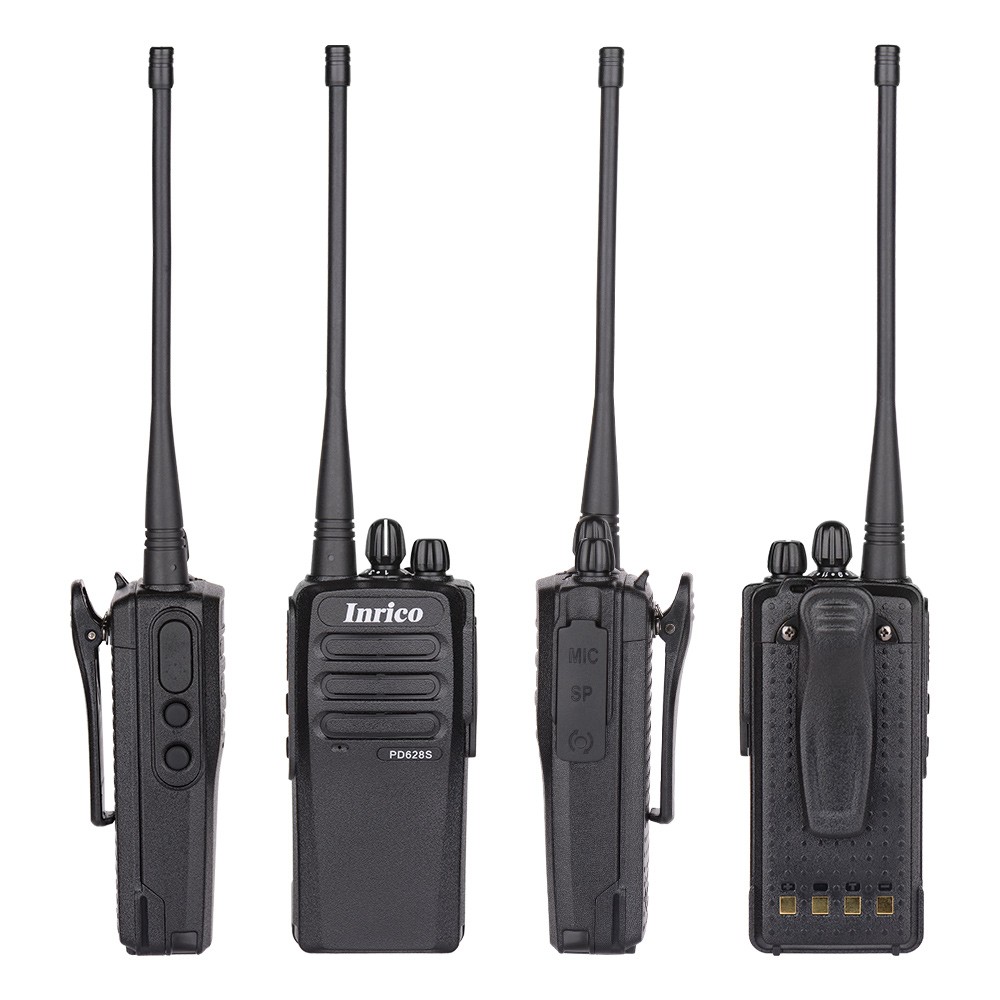

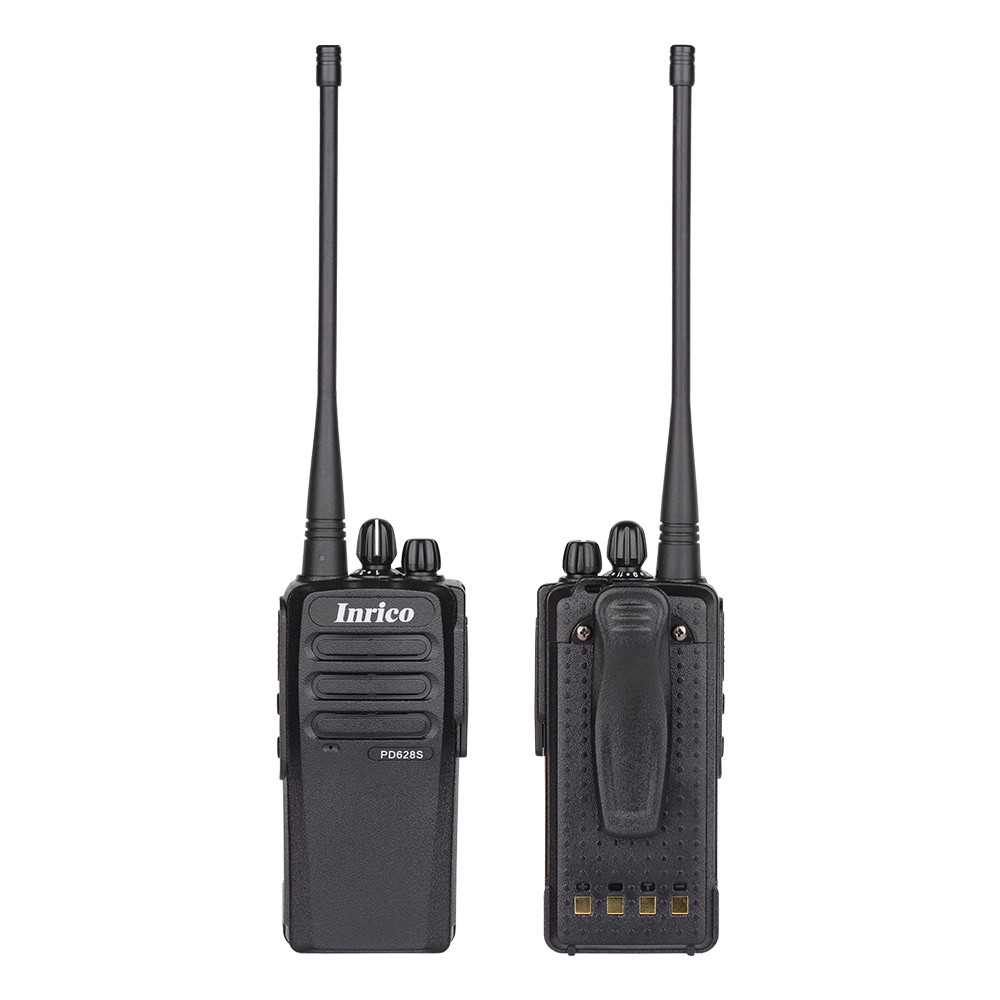

Front

Rear

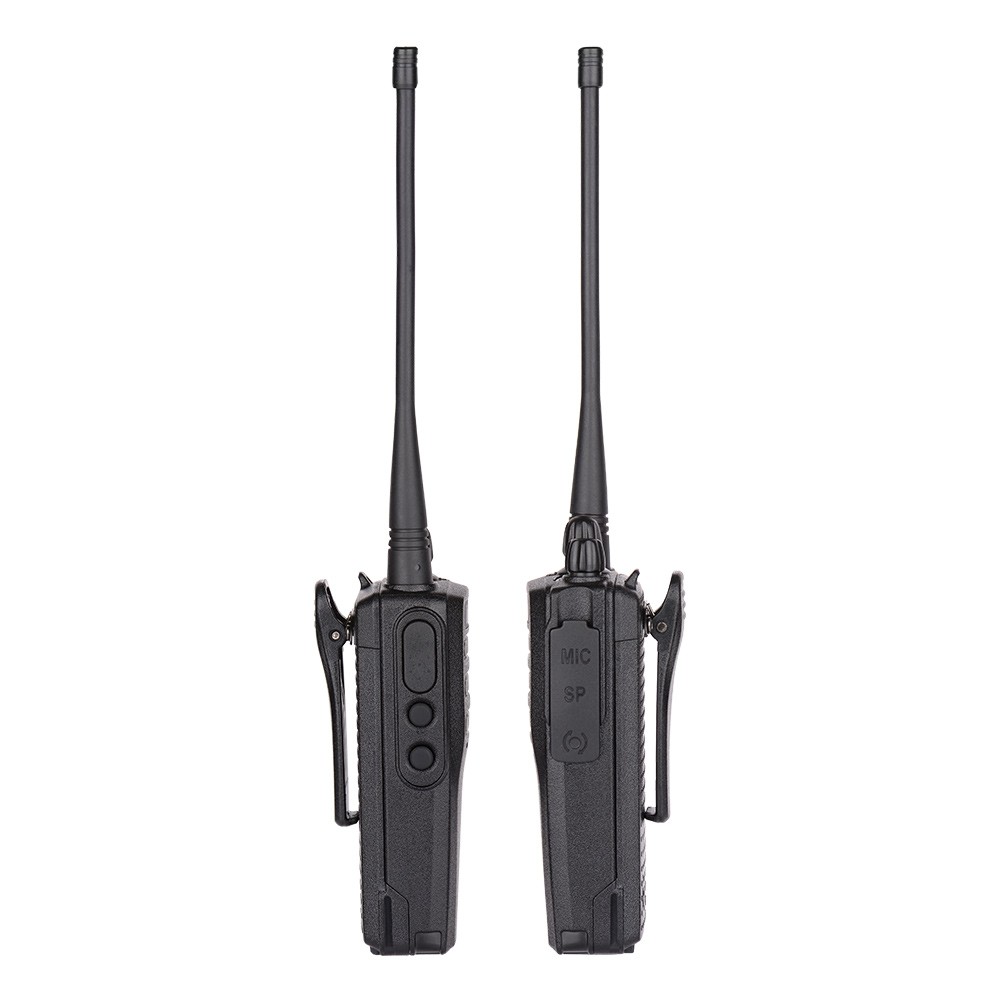

Side

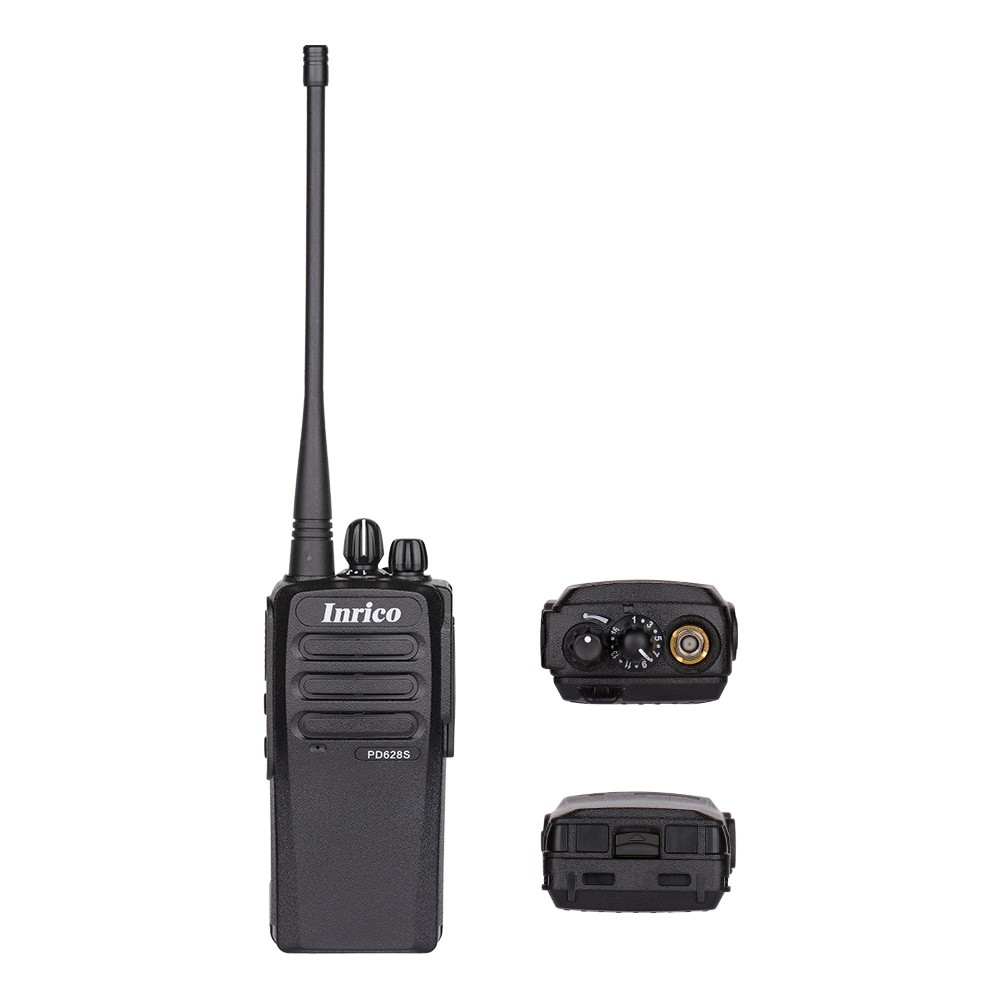

Top and Bottom

Specifications
UHF/VHF
VHF(136-174MHz)/UHF(400-470MHz)
Channel Capacity
32
Power Output
5W/1W
Channel Spacing
25KHz/12.5KHz
Earphone Jack
2.5mm+3.5mm
Speaker
16Ω 1W
Battery
1500mAh
Transmitter(Standard:EIA-RS 316B)
CSQ Power Output
5W/1W
Modulation Limiting
16K0F3E/11K0F3E
4FSK Digiatl Modulation
7K60F10/7K60FX0
Audio Distortion
<5%
Frequency Stability
1.5ppm
Receiver(Standard:EIA-RS 316B)

Sensitivity
Analog: 12db SINAD: 0.25μV
Digital: 1% BER: 0.28μV
Adjacent Channel Selectivity
60dB
Intermodulation
60dB
Spurious Rejection
60dB
Audio Output
500mW*2/160hms SPK
FM Hum & Noise
40dB
Conducted Spurious Emission
-57dBm
Physical
Dimension (H*W*D)
125*60*37mm(Without Antenna and Belt clip)
Weight
≈230g
Working Temperature
-20°C ~ 55°C
Storage Temperature
-20°C ~ 70°C
Certifications
Protection Level
IP54
Certificate
CMIIT ID:2019FP13099
