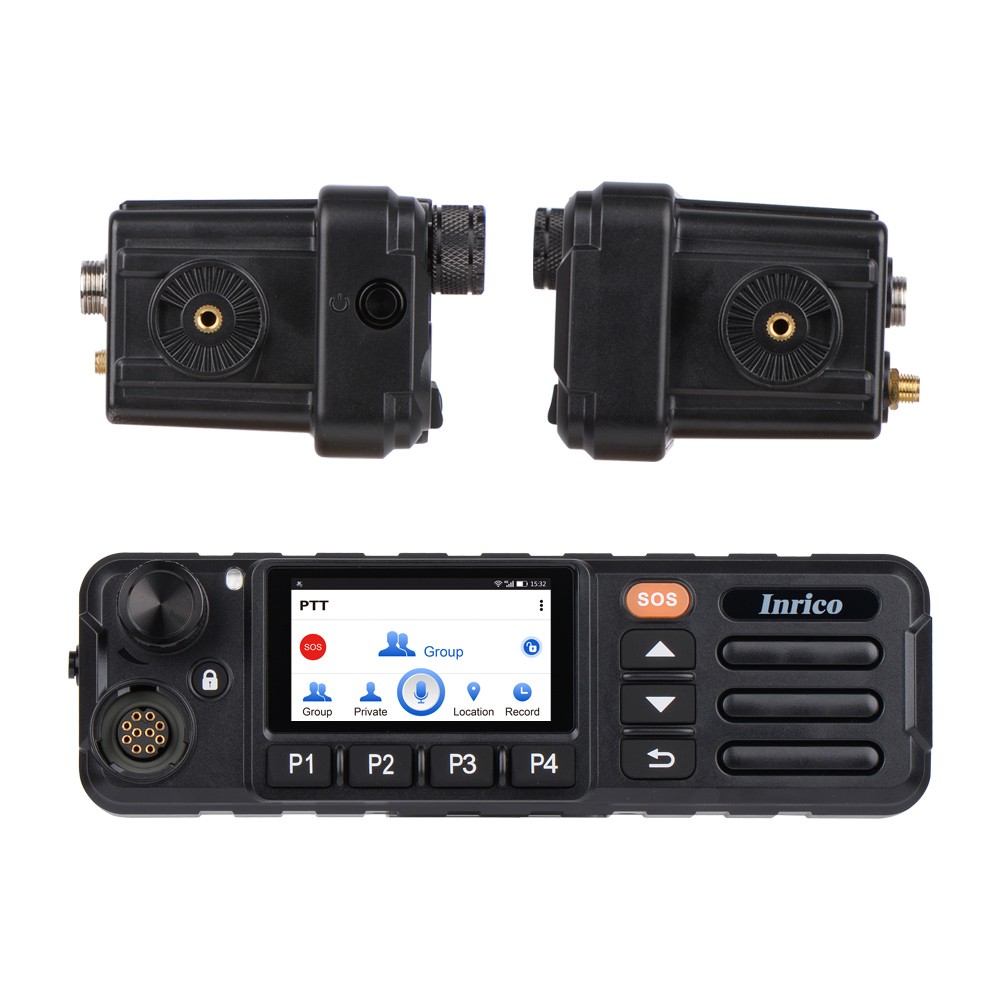

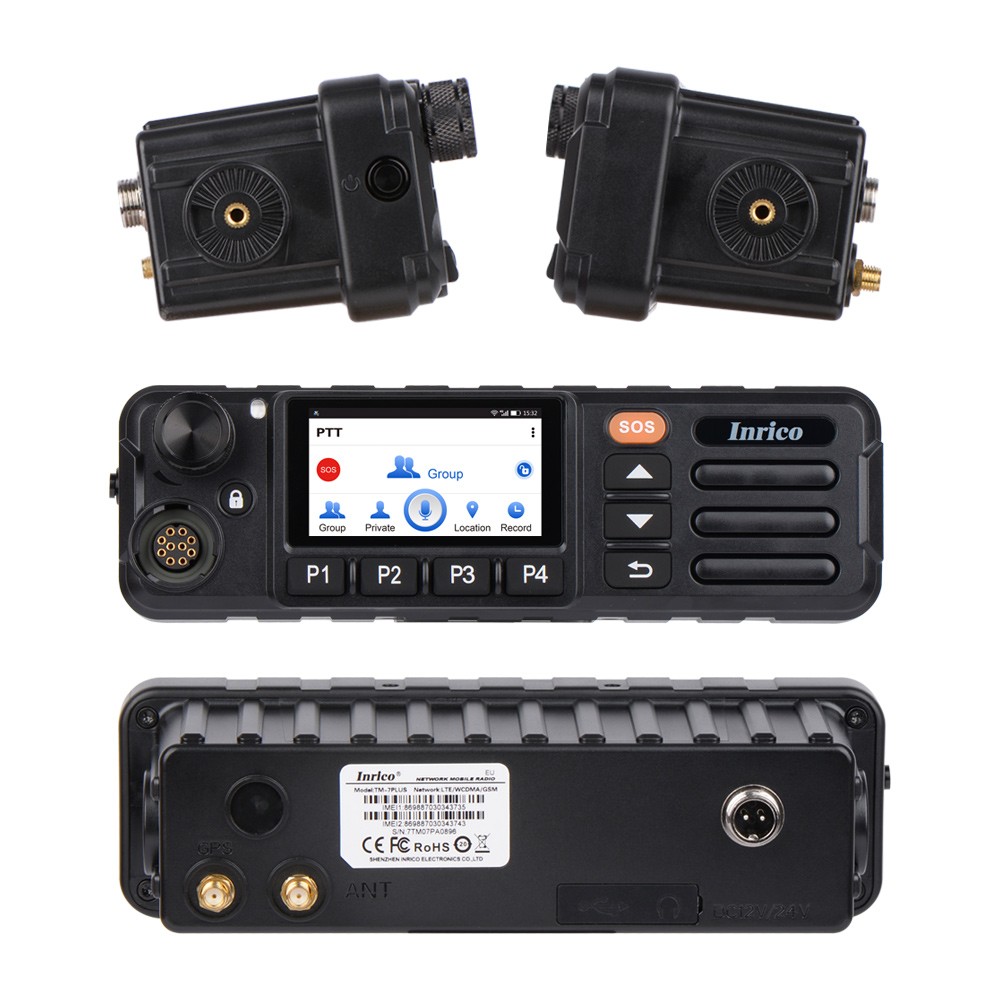

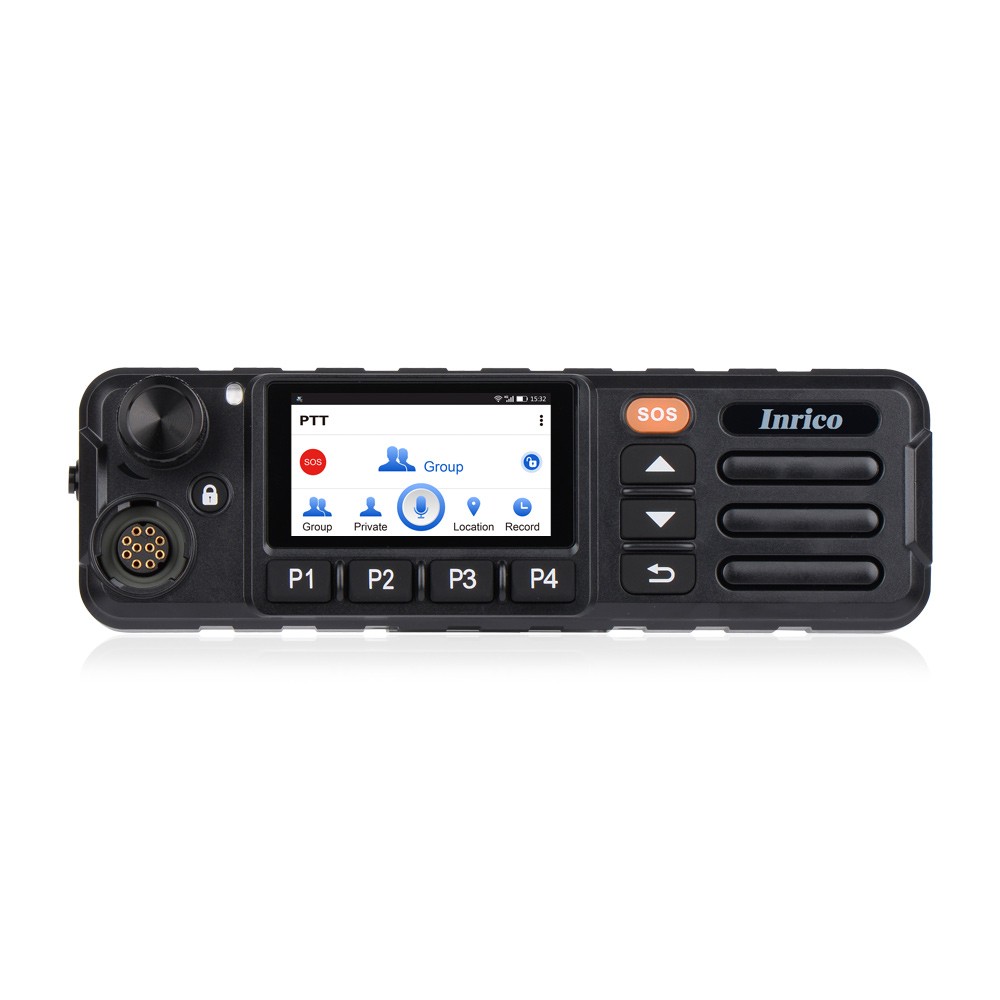

Front

Rear

Side

Top and Bottom

Video

Android 11 Ecosystem, Supported by GMS
TM-7Plus is driven by Android 11 Ecosystem, which provides users with a more comprehensive service experience. Empowered by Google Mobile Service (GMS), the radio can support Google Apps and third-party apps for a truly efficient and productive smartphone experience.
5W Speakers Ensures Clear and Bright Sound
5W Speakers guarantee that you won’t miss any crucial information. With its optimized dust-proof capability, TM-7Plus ensures outstanding audio quality even in extreme conditions.
3pin Aviation Power Connector and Acc Wire
TM-7Plus is equipped with a reinforced 3pin aviation power connector, which is more solid and reliable to ensure a continuous and stable power supply. The mobile radio can sync with the vehicle ignition, making the operation more convenient.
40V Anti-Overvoltage Protection, Compatible with Various Vehicles
TM-7Plus offers up to 40V anti-overvoltage protection, making it applicable to various vehicles ranging from 12V, 24V, to 36V, dramatically enhancing safety in use.

CONNECTION

EU version

GSM: B2/B3/B5/B8

WCDMA: B1/B2/B5/B8

TD-SCDMA: B34/B39

CDMA: CDMA2000 1X/EVDO BCO

FDD-LTE: B1/B3/B5/B7/B8/B20/B28A/B28B

TDD-LTE: B38/B39/B40/B41

US version

GSM: B2/B3/B5

WCDMA: B1/B2/B4/B5

TD-SCDMA: B34/B39

FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B66


TDD-LTE: B38/B40

Wi-Fi

802.11 a/b/g/ac/k/v/r,( 2.4GHz & 5GHz )

Bluetooth

BT4.0 & BLE5.0

Navigation

GPS/GLONASS/AGPS

OS

Operating System

Android 11

Hardware

RAM+ROM

2GB+ 16GB

Card Slot

Dual Nano SIM Card + TF Card

USB Port

Type-C

Interface

External Power Interface/ External GPS Antenna Interface/External GSM Antenna lnterface/ External Speaker Interface

Option A: DB15 Interface     Option B: HDMI Interface / RJ45 Interface

Screen

G + F Touch Screen

Screen Size

IPS 2.45inches, 240X432Pixel

Camera

Support three-way camera (USB 1-way; DB15 support two-way camera at the same time)

Speaker

3558 Runway Type Speaker, 5W

Microphone

Support Hand Microphone

Weight

450g

Dimension(HxWxD)

188x 58 x 87mm(with the knob)

Working Temperature

-20°C ~ 60°C

Storage Temperature

-30°C ~ 70°C

Certification

Ingress Protection

IP54

Certification

CE/FCC/ROHS
